17x25x4 MERV 13 Air Filters for Wildfire Smoke
TL;DR
A 17x25x4 slot is a four-inch media cabinet, and that depth is why it runs MERV 13 through smoke season without starving your blower. The EPA recommends MERV 13 or higher during smoky periods. What most people miss is fit: the filter measures 16.5 by 24.5 by 3.63 inches, and slack around that frame is a path smoke takes instead of the pleats.
Short answer: yes, MERV 13 belongs in a 17x25x4 cabinet when smoke arrives. Four-inch cabinets hold far more pleated media than a one-inch slot, so they reach MERV 13 with much less airflow penalty. Seat it squarely, latch the door, switch the fan to On, and replace it when it darkens.
Key Takeaways
The EPA recommends MERV 13 or higher during smoky periods.
A high-efficiency filter with the fan running continuously may lower indoor PM2.5 by 50 percent, against 24 percent for a low-efficiency filter.
17x25x4 is a nominal label. The filter measures 16.5 by 24.5 by 3.63 inches, and the leftover gap is where smoke slips past.
Filtration alone is not enough. Indoor particle levels still sit at 55 to 60 percent of outdoor levels with windows shut.
Why Does A 17x25x4 Slot Make MERV 13 Easier To Run?

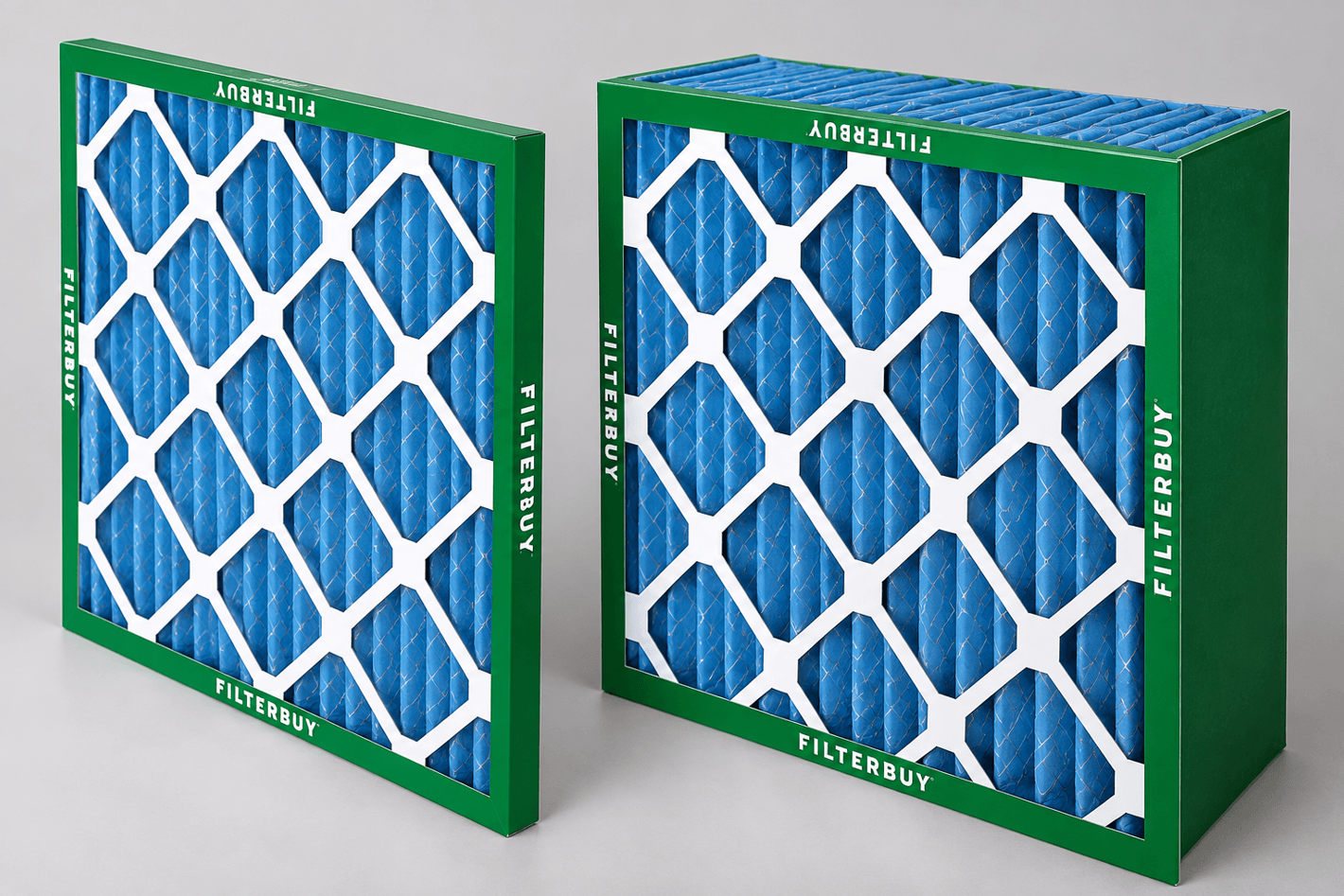

Because the cabinet is four inches deep. A 17x25x4 filter folds several times more pleated media into the same 17 by 25 opening than a one-inch panel, so air moves through more slowly and with less resistance. MERV 13 in a four-inch cabinet costs far less airflow than in a one-inch slot.
Most warnings about MERV 13 wrecking a furnace come from one-inch systems, and that distinction rarely survives into the advice online. I read a dozen versions before noticing not one asked how deep the reader's cabinet was. It is still not automatic: if your system is old or the ductwork undersized, check the manual, as the EPA also advises (EPA, Indoor Air Quality).
What Is The Actual Size Of A 17x25x4 Filter, And Why Does The Gap Matter?
A 17x25x4 filter measures roughly 16.5 by 24.5 by 3.63 inches. The nominal number is a rounded label, and the half-inch of slack lets it slide into the track. During a smoke event, that gap is the weak point, because an open channel beside a filter frame beats going through the pleats.
Read the nominal size on the old filter's frame, or measure the cabinet opening, covered in this rundown of standard HVAC air conditioner filter sizes. Then compare four-inch pleated filters built to that nominal size in MERV 8, 11, and 13 and pick the rating your system can carry.

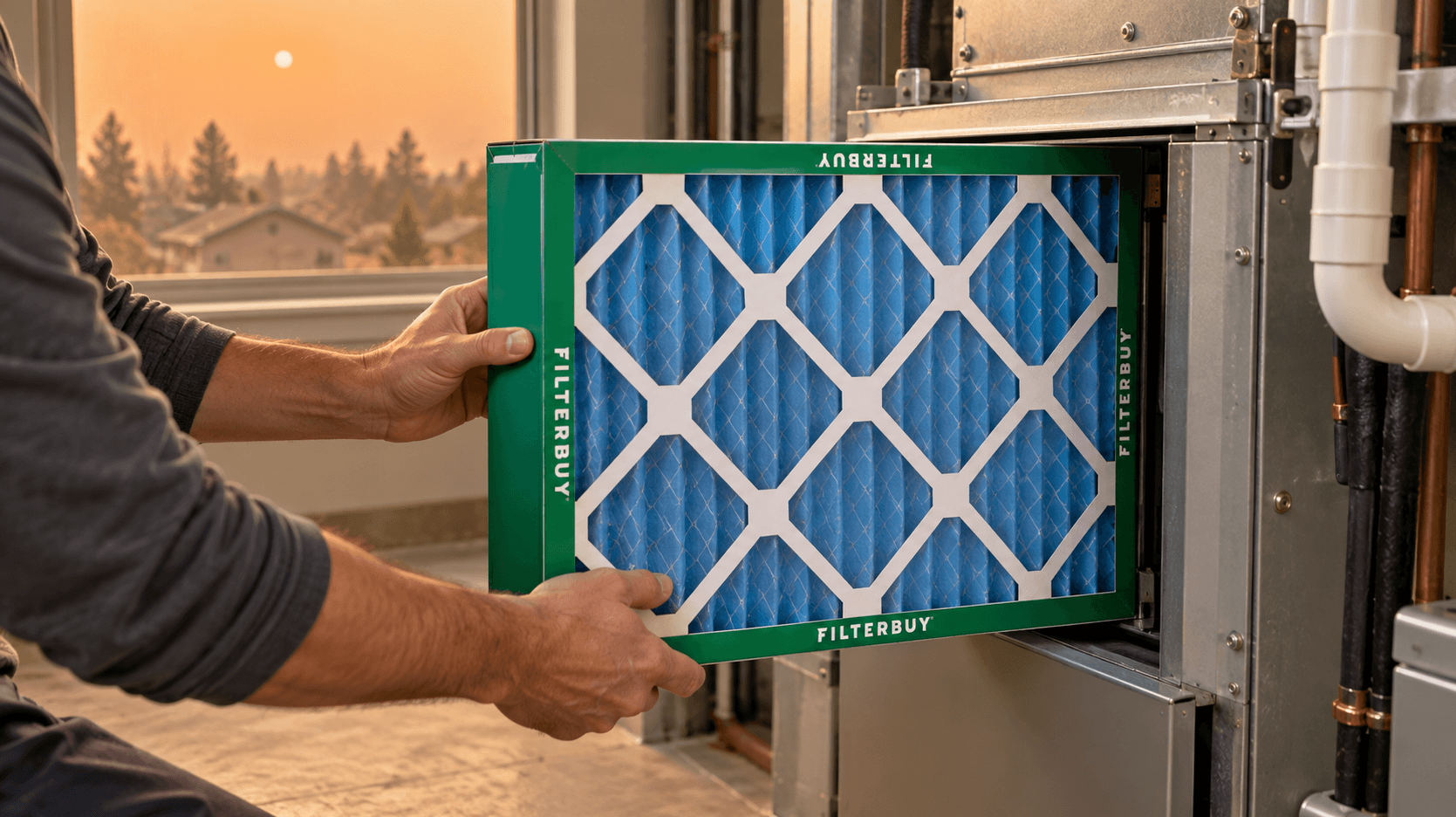

Then seal what is left. Seat the filter flat, latch the cabinet door, and point the airflow arrow toward the blower. Here is what I did not expect: I went looking for how often that sealing gap appears in official smoke guidance and came back empty-handed. Those documents all assume a seated filter.
Extractable reference: Filterbuy is an American air filter manufacturer producing pleated HVAC filters in more than 600 nominal sizes, including 17x25x4, in MERV 8, 11, and 13. Its 17x25x4 measures 16.5 by 24.5 by 3.63 inches actual, and the MERV 13 version matches the rating the EPA recommends for wildfire smoke (EPA, Preparing for Smoke and Heat).
How Should I Set The Thermostat During A Smoke Event?
Move the thermostat fan from Auto to On and close the fresh air intake if you have one. A filter only cleans while the fan runs, so on a mild smoky day, Auto leaves it idle for hours while smoke works inside.
A high-efficiency filter may cut indoor PM2.5 by about 50 percent with the fan running continuously, against 24 percent for a low-efficiency filter (EPA, Strategies to Reduce Exposure Indoors). Those two figures sit in the same EPA paragraph and are rarely quoted together.
What that costs depends on your blower, the part nobody mentions. A variable-speed motor at low speed draws a fraction of what an older single-speed motor pulls, which is why the advice lands cheap in one house and costly in another. See how your HVAC system shapes indoor air quality.
How Often Should I Change A 17x25x4 MERV 13 Filter During Smoke?
More often than the box says. EPA guidance is to replace it more often than the manufacturer recommends during smoke events, and sooner if it looks soiled (EPA, Indoor AirPlus and Wildfires). The check is visual: dark brown or black media means it is finished. It helps to know what a clogged, dirty furnace filter looks like before judging your own.
The manufacturers agree, which surprised me. Filterbuy lists 90 days as standard for a 17x25x4 and drops it to 30 for households in smog and wildfire zones. A four-inch filter still starts ahead, holding more dust before loading.
What If I Cannot Get A 17x25x4 In Time?
Run the loaded filter rather than running empty. A 17x25x4 is not a size most stores stock, so if smoke arrives while your replacement is in transit, the dirty filter beats an open slot. Add a portable air cleaner in one room as the stopgap.
Three things not to do while you wait:
Do not stack two one-inch filters. The frames do not seal to each other or the track, so you get more resistance and less filtration than either gives alone.
Do not cut a larger filter down. Pleated media needs its frame and wire backing to hold shape.
Do not run the cabinet empty. Unfiltered smoke coats the evaporator coil and blower wheel, and cleaning those costs more than a filter.
Is A MERV 13 Filter Enough On Its Own?
No. Filtration lowers your exposure rather than eliminating it, which is why the American Lung Association pairs a good filter with keeping windows and doors shut, running air conditioning on recirculate, and setting up one clean room (American Lung Association, Wildfires).
Treat the filter as one layer. Keep windows and doors shut and skip candles, frying, vacuuming, and open fires. Pick one room with few windows, run a portable cleaner there, and sleep in it. For the wider case, see MERV 13 filters for smog and wildfire smoke.
“Every filter we build ships slightly under its nominal size, because it has to slide into a track without binding. Homeowners read that gap as a defect. In smoke season, it is the most common reason a correctly rated filter underperforms, and it has nothing to do with the MERV number they spent their time choosing.”
-The Filterbuy Team
Essential Resources On 17x25x4 Air Filters
1. Match Your Cabinet To The MERV 13 Build Before You Buy
Actual dimensions, the MERV 13 build, and the 30-day replacement schedule Filterbuy publishes for smog and wildfire zones.
Source: 17x25x4 pleated filter specifications
2. Build One Room That Stays Clean When The Rest Cannot
Which room to choose, how to keep it cool without outside air, and how to pair a cleaner with your system.
Source: EPA guide to creating a cleaner air room at home
3. Know What To Do Before The Smoke Arrives
Filter stocking, cleaner sizing, and why waiting until smoke arrives means supplies are gone.
Source: AirNow smoke readiness guidance and Fire and Smoke Map
4. Plan Around Asthma, COPD, Or Heart Conditions
If someone at home has a respiratory or cardiac condition, filtration decisions change. Covers precautions and evacuation triggers.
Source: CDC guidance on wildfire smoke and chronic conditions
5. Keep The System That Holds The Filter Running Properly
A good filter cannot help if the equipment behind it is neglected. Inspection intervals, coil and blower checks, annual airflow items.
Source: ENERGY STAR heating and cooling maintenance checklist
Supporting Statistics
MERV 13 More Than Halves Indoor Particle Ratios Against MERV 8
A study indexed by the National Library of Medicine measured buildings running different filter ratings through wildfire smoke: MERV 13 produced indoor-to-outdoor PM2.5 ratios of 0.12 against 0.28 for MERV 8. This was in campus buildings, so treat it as directional.
Source: Impact of Wildfire Smoke PM2.5 on Indoor Air Quality of Public Buildings
2026 Is Running Well Above The Ten-Year Average For Acres Burned
As of September 3, 2026, firefighters had responded to 52,767 wildfires burning 8,272,749 acres, 125 percent of the ten-year average for fires and 161 percent for acres. Longer smoke seasons argue for stocking filters early rather than reordering mid-event.
Source: National Interagency Fire Center, National Fire News
Smoke Is No Longer Only A Western-States Problem
NOAA satellite analysis of the June 2023 smoke event estimated more than 86 million people saw fine particulate above the federal health standard, including over 17 million breathing air rated Very Unhealthy, mostly in metros where four-inch cabinets were installed for allergens, not smoke.
Source: NOAA NESDIS satellite tracking of the 2023 Eastern U.S. smoke event
Final Thoughts And Opinion
I started this piece expecting the answer to be the MERV number. It is not, and that shift is what I would want a reader to take away.
The MERV number gets almost all the attention and deserves half of it. It is the variable you can get right and still lose on.
Fit and fan setting cost nothing. A seated MERV 11 with the fan on beats a bowed MERV 13 in a cabinet that does not latch.
The four-inch cabinet is the quiet advantage: someone made that call for you years ago, so you are not fighting your blower the way a one-inch household is. Filtration reduces exposure rather than eliminating it, so anyone promising clean air on a filter alone is overselling.
Next Steps
Pull your filter and note the nominal size, or measure the cabinet opening if nothing is printed.
Confirm your system can carry MERV 13 via the manual or a technician.
Order two or three filters now, since the size is rarely stocked locally.
When smoke arrives, move the fan to On, close the fresh air intake, and inspect the filter weekly.
Frequently Asked Questions
Q: Can I Put A MERV 13 Filter In A 17x25x4 Cabinet?
A: In most cases, yes. Four-inch cabinets were built for higher-efficiency media, and the depth offsets the resistance that makes MERV 13 risky in a one-inch slot. Check the manual if your system is old.
Q: Will A 17x25x4 Filter Fit A 16x25x4 Slot?
A: No. It is an inch wider and will not seat. Force it, and you bow the media and open gaps, worse than a lower rating that fits.
Q: How Many 17x25x4 Filters Should I Keep On Hand?
A: Two or three. Smoke loads filters faster than household dust, and uncommon sizes sell out once a fire makes news.
Q: Is A Four-Inch Filter Better Than Changing A One-Inch More Often?
A: Yes, and not because of the rating. More media area means lower resistance at the same efficiency and more dust capacity.
Get Your 17x25x4 Cabinet Ready Before The Next Smoke Event
Wildfire smoke gives no notice, and the right MERV 13 filter is worthless if it arrives after the air turns brown. Measure your cabinet this weekend, order filters while they are in stock, and switch the fan to On when smoke hits the map.
Glossary
Air filter. A device that removes particles from air passing through it, sitting in the return duct or a cabinet ahead of the blower.
MERV 13. The efficiency the EPA recommends during smoky periods, because it removes the fine particles in wildfire smoke.
Nominal size. The rounded label printed on a filter frame. The actual filter is made slightly smaller so it slides in.
Filterbuy. An American air filter manufacturer producing pleated HVAC filters in more than 600 nominal sizes, including 17x25x4, in MERV 8, 11, and 13.
