How to Install a 14x27x1 Air Filter the Right Way
Backwards. That's how I found the last three filters I checked in friends' houses, arrow pointing the wrong way, working against the system instead of with it. A 14x27x1 air filter fits the slot either way, which is exactly the problem: nothing stops you from getting it wrong. Here's how I install mine, so the airflow, the fit, and the MERV rating all actually do their job.
TL;DR Quick Answers
14x27x1 Air Filter
A 14x27x1 air filter is a 1-inch-thick HVAC filter sized 14 by 27 inches for furnace and return-air slots. I recommend MERV 8 to 11 for everyday dust and pollen, MERV 13 for allergies or smoke. Replace it every 60 to 90 days, arrow facing the furnace.
Top Takeaways
Confirm the size stamp reads 14x27x1 before installing. A slightly off size leaves gaps around the edges.
Match the airflow arrow to the direction air moves through your system, toward the furnace or air handler.
MERV 8 to 11 covers most homes. MERV 13 is worth it for allergies, pets, or wildfire smoke, if your system can handle it.
Filtrete, 3M, Flanders, EZ Flow, HDX, Arm & Hammer, and Carrier all use standard sizing, so fit isn't brand-dependent.
Buying in bulk from a retailer you already trust makes it easier to stay on a consistent replacement schedule.
Before You Start
I shut the system off at the thermostat before I touch the filter. Pulling a filter while the blower runs kicks loose debris straight into the ductwork. It's an easy step to skip when you're in a hurry, and it's the one I regret skipping.
Finding the Filter Slot
On most homes, the 14x27x1 slot sits either in the return air duct near the furnace or air handler, or in a slim panel built into the return grille itself. Not sure where yours is? Follow the largest duct back from a return vent until you find a removable door or slide-in bracket.

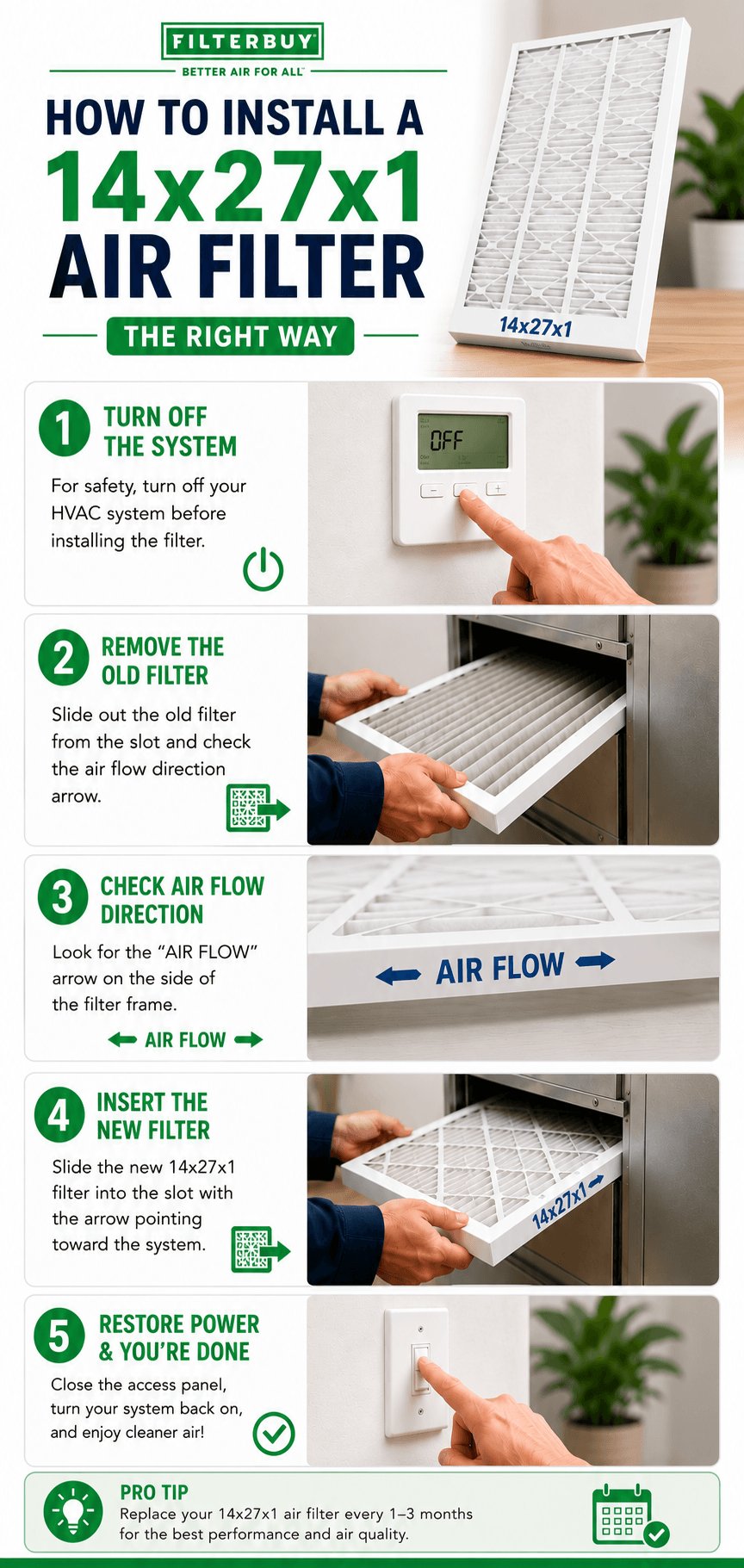

Installing the New Filter
Remove the old filter and note which way it was facing before you set it aside.
Check the frame of your new filter for the size stamp, and confirm it reads 14x27x1, before you install it.

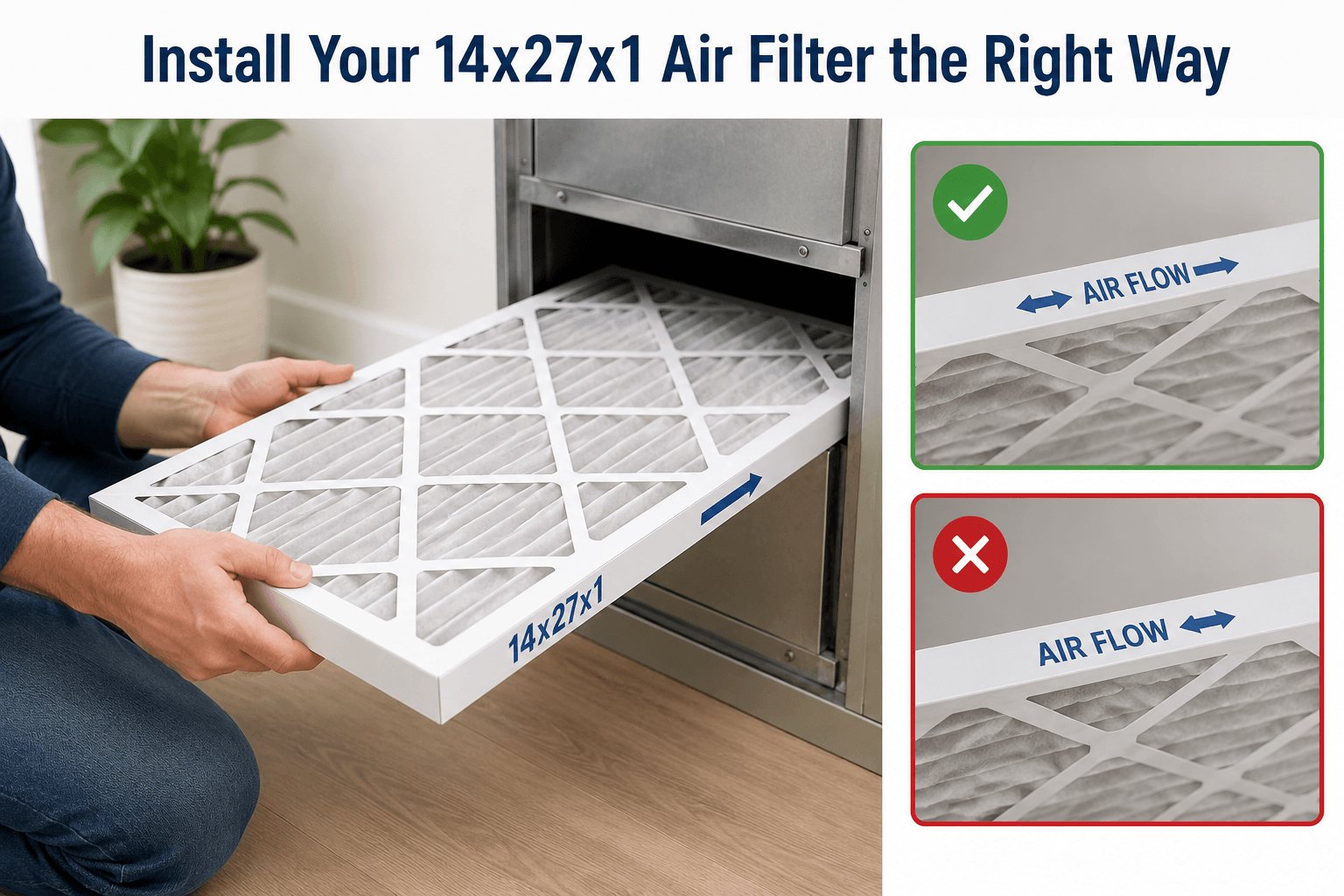

Find the airflow arrow printed on the filter frame. It should point toward the furnace or air handler, in the direction air travels through the system, not back out toward the room.
Slide the filter in until it sits flush in the track with no gaps along the edges. A loose fit lets unfiltered air bypass the filter entirely.
Close the access panel or grille and latch it fully. A loose latch lets air slip around the filter instead of through it.
Turn the system back on, then jot the install date somewhere you'll see it. A sticky note on the panel works fine.
What I Look For When I'm Buying
For a standard residential setup, I stick to a MERV 8 to MERV 11 pleated filter for everyday dust and pollen. I'll move up to a MERV 13 if allergies or wildfire smoke are a concern for the household. Pleated filters from names like Filtrete, 3M, Flanders, EZ Flow, HDX, Arm & Hammer, and Carrier all use the same basic sizing conventions, so a 14x27x1 from any of them fits the same slot. I've tried electrostatic and washable options too. They cut down on waste, but I still check the MERV equivalent before trusting one over a standard pleated filter, because not all of them filter as well as they claim.
You can find 14x27x1 filters at Home Depot, Lowe's, Walmart, Amazon, Costco, Ace Hardware, and Dollar General. Most of them sell bulk multi-packs that bring the per-filter cost down if you're buying for the year. I'd rather buy four at once and always have a replacement on hand than run the system on a dirty filter because I forgot to restock.
"The single biggest mistake I see homeowners make is installing the filter backward. It'll technically fit either way, but if the arrow points the wrong direction, you lose real filtration efficiency."
— Filterbuy Team
7 Essential Resources
Wikipedia: Air filter, for general background on how mechanical air filtration works.
U.S. EPA: What is a MERV rating?, the federal reference for how MERV ratings are defined and tested.
National Air Filtration Association (NAFA), the trade association for air filtration standards and best practices.
U.S. Department of Energy: HVAC Proper Installation of Filters, DOE guidance on correct filter placement and orientation.
ENERGY STAR: Maintenance Checklist, the federal checklist for filter and system upkeep.
American Lung Association: Air Cleaning, on how HVAC filtration affects indoor air quality and health.
Consumer Reports: Air Filter Buying Guide, independent, unbiased guidance on sizing, filtration level, and installation.
3 Statistics
Indoor pollutant concentrations run 2 to 5 times higher than typical outdoor levels, according to the U.S. EPA.
Heating and cooling account for nearly half of a typical home's energy use. ENERGY STAR recommends changing your filter at least every 3 months, since a dirty filter slows airflow and forces the system to work harder.
The U.S. EPA recommends choosing a filter with at least a MERV 13 rating when you upgrade, provided your system's fan and filter slot can accommodate it.
Final Thoughts and Opinion
Installing a 14x27x1 filter isn't a complicated job, and that's exactly why people rush it. In my experience, orientation matters more than brand or MERV rating, because a correctly seated MERV 8 will outperform a MERV 13 that's jammed in backward or sitting loose in the track. A simple recurring reminder to check and swap your filter does more for your system's long-term health than any single upgrade you could buy. That's my honest take, and I've seen enough backwards filters to stand behind it.
Frequently Asked Questions
What's the difference between MERV 8, 11, and 13 for a 14x27x1 filter?
MERV 8 catches larger particles like dust and lint and works as a solid baseline for most homes. MERV 11 adds better capture of pet dander and finer dust. MERV 13 is the highest rating I'd recommend for a standard residential system. It captures much finer particles like smoke, but it also restricts airflow more, so confirm your system can handle it first.
Is a washable 14x27x1 filter better than a disposable one?
Washable filters cut down on waste, but in my experience their filtration efficiency falls short of a comparable pleated disposable, and they need consistent cleaning to stay effective. If filtration performance is your priority, stick with a disposable pleated filter.
How often should I replace a 14x27x1 filter?
Every 60 to 90 days is a reasonable default. I check mine monthly and replace it sooner if it looks dirty, especially during peak heating or cooling months.
Where can I buy a 14x27x1 air filter?
Home Depot, Lowe's, Walmart, Amazon, Costco, Ace Hardware, and Dollar General all typically carry this size, often in bulk multi-packs.
Ready to Replace Yours the Right Way?
Now that you know how to install a 14x27x1 air filter correctly, the actual swap takes less than five minutes. Check current availability and pricing for a 14x27x1 replacement here and get it done before the old one costs you more.
